ValkBox Smartline

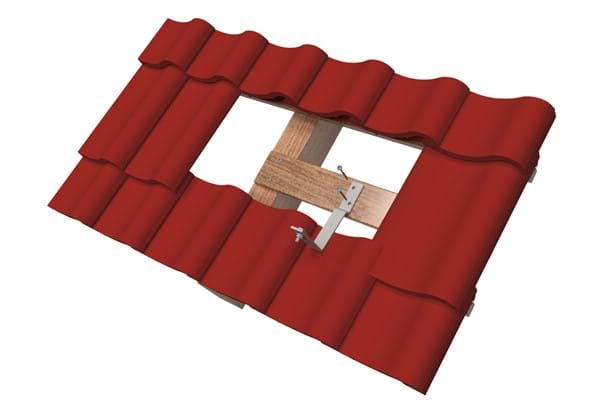

Mounting to the counter battens using extra construction timber that is supplied
- Just three components: box, profile + wood
- Exact dimensions using special washers that can be applied quickly
- Maximum distance roof hooks 1200 mm and overhanging profile past last roof hook 300 mm
Communal features of the ValkBox Slimline, Smartline and Strongline
- Mounting system for pitched roofs with roof tiles
- All loose mounting material packed in one box
- In white, semi-black and black version
- Profiles of 2113 mm for efficient (vertical) transport or every desired length
- Portrait mounting. With landscape mounting, additional items can be ordered using the ValkKITSplanner
- Nine variants for layouts of up to nine panels per row

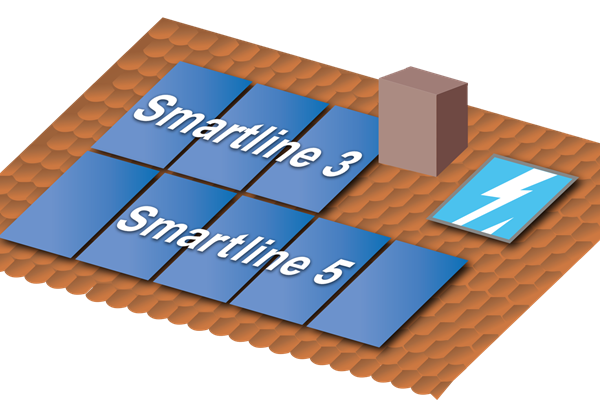

A sample calculation with the ValkBox Smartline
On a roof on which one row with three panels and one row with five panels can be placed, just the following is required (portrait mounting, Smartline roof hook):
• 1 x ValkBox – Smartline 3
• 1 x ValkBox – Smartline 5
• 2 lengths of profile of 3140 mm
• 2 lengths of profile of 5194 mm
• 14 lengths of construction timber of 730 mm
For the ValkBox Slimline and Strongline, exactly the same calculation method can be used as for the ValkBox Smartline. Here, however, no construction timber is necessary.
With the free ValkKITSplanner, you can easily and quickly make a calculation for the ValkBox pitched roof systems (roof tiles). You then immediately receive a list of items in your inbox so that you can order the materials from your wholesaler straight away. The planner is available in 8 languages (NL/DE/EN/FR/FI/NO/PL/SE). Like to try it yourself?
