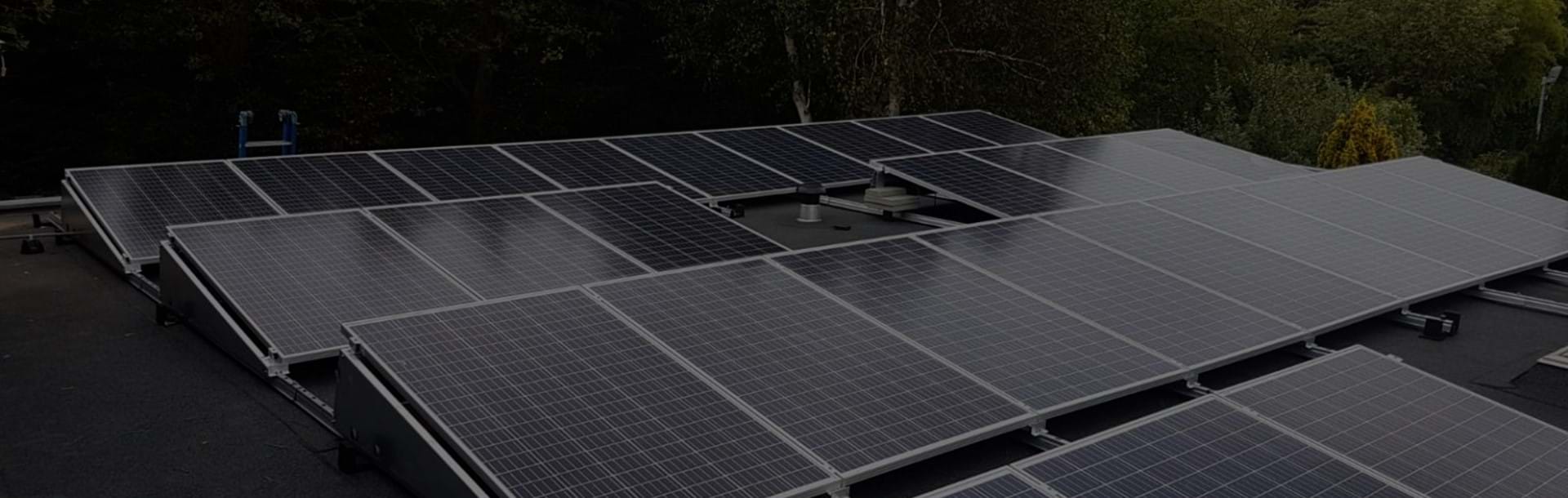

ValkPro+ P10 South

Unique to this PV mounting system:
- Portrait mounting
- 10° tilt angle
- Pitch: 2100, 2200, 2300 or 2400 mm
- Also available in east-west configuration
Communal features of the ValkPro+ L10 and P10
- Mounting speed 3 minutes per panel (east-west or south systems)
- Metal couplings, so pre-prepared for grounding and lightning protection
- Standard application to 25m roof height (higher on request)
- Minimal number of compulsory items
- Low ballast, supported by the national standards and wind-tunnel tests
- Also suitable for 2m and ‘high power’ panels
Foundation methods flat roof systems
The ValkPro+ L10 South or East-West and the ValkPro+ P10 South or East-West have different foundation methods. For example, the systems can be mounted using rubber tile carriers, mass blocks, or consoles.
Rubber tile carriers are easy to transport and install due to their low weight and soft structure and they also protect the roof surface.
The advantage of mass blocks is that they can immediately be used as a considerable part of the ballast. In addition, when mass blocks are used the height of the system is increased, which leads to easy mounting, for example, when applied as a field configuration.
Consoles facilitate fixed mounting on the roof in areas with very high wind load or roofs that cannot bear any weight. This specific implementation guarantees water-proof sealing.
Glass panels
Besides the conventional solar panels with frames, solar panels without frames can also be attached using glass clamps.
Free software
Using our free software, the ValkPVplanner, a complete project calculation with a list of items and a project-specific installation guide can be obtained in easy steps.
