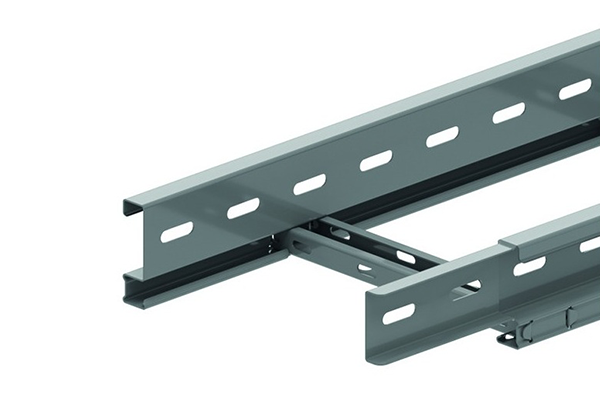

- Material: Zinc-magnesium
- Height: 60 mm
- Width: 300–500 mm
- Integrated connector for easy coupling, secured with M6 bolts and nuts
- Excellent suitability for AC cable trays
- Manufactured with an eco-friendly coating featuring cut-edge protection (self-healing effect)
- Tested electrical conductivity with integrated coupling and coupling plates
- Excellent corrosion resistance: C4
- Verifiable load diagrams for permissible loads per support span
First support point at 1/5 of the support span from the coupling, and final span = 0.8 times the span.
Article numbers: 76050300603000 | 76050400603000 | 76050500603000 | 773010 | 773006
Cable support system for safe cable routing
The basis for professional cable management on flat roofs
Cable ladders
Our cable support systems offer you a reliable and efficient way to organise cable routes. Our cable ladders and accessories provide a robust solution for the safe installation of electrical cabling. Thanks to the various types of cable ladders and mounting options available, you can easily put together a system that suits your installation.
Looking for one of our other cable support systems?
Cable ladders

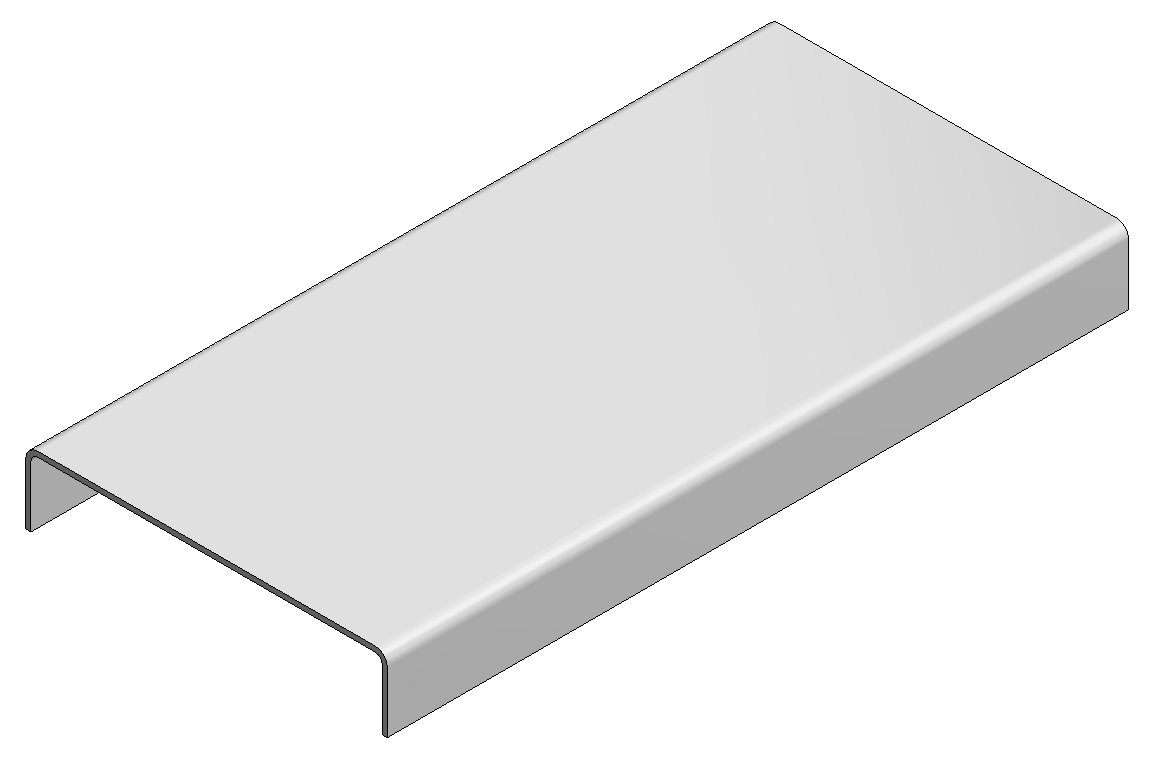

Covers and cover clamps
- Material: Zinc-magnesium
- Width: 300 – 500 mm
- Application: 6 clamps per cover
- Effective protection against UV light and the elements for electrical cabling
Article numbers: 760303002000 | 760304002000 | 760305002000 | 764020

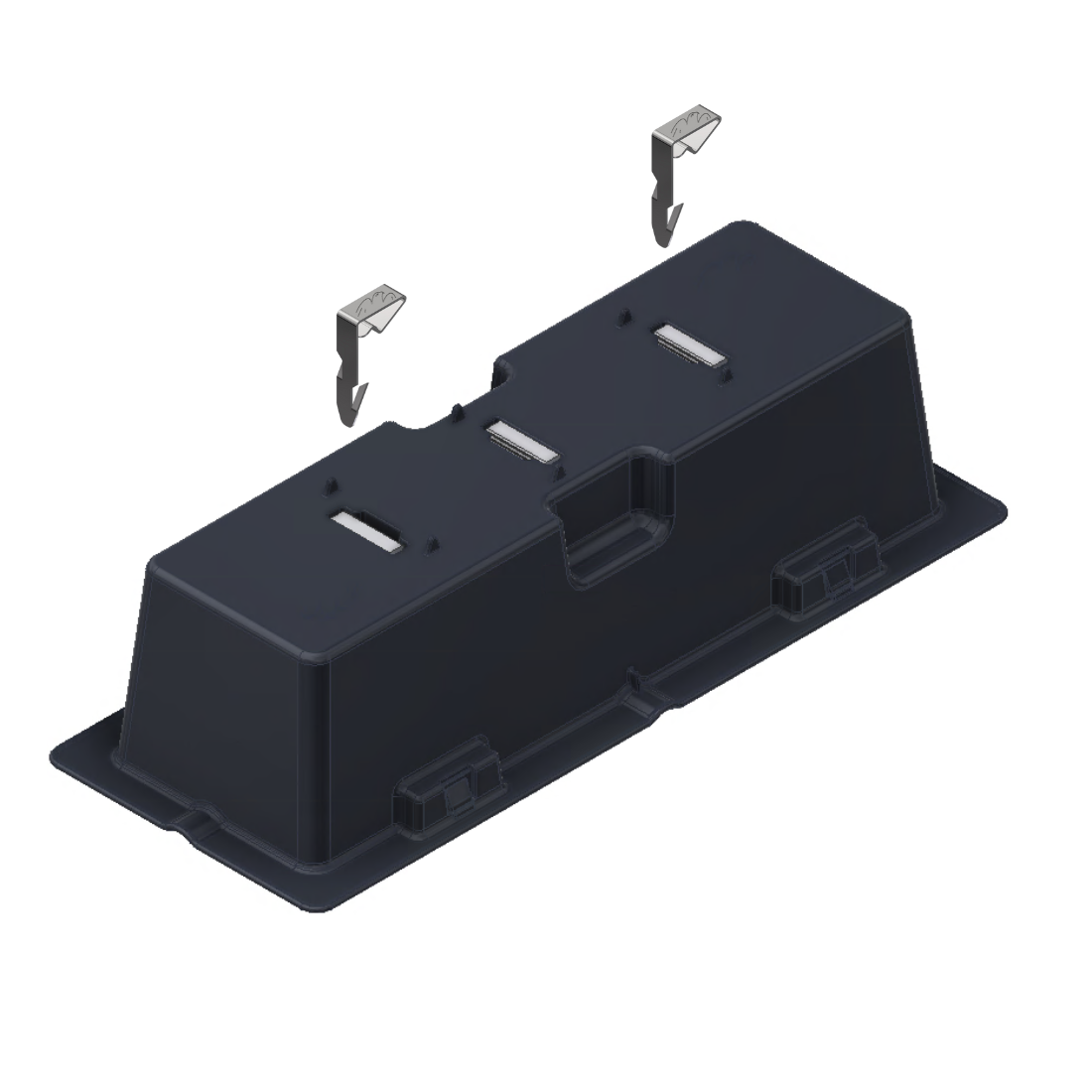

Support blocks
- Standard application: one support per 1.5 metres
- Weight: 1.135 kg
- Wide support for stable installation
- Compatible with bitumen and PVC roofs
- Supplied as standard with 2 fixing clips; spare clips available
Article numbers: 760215 | 760209

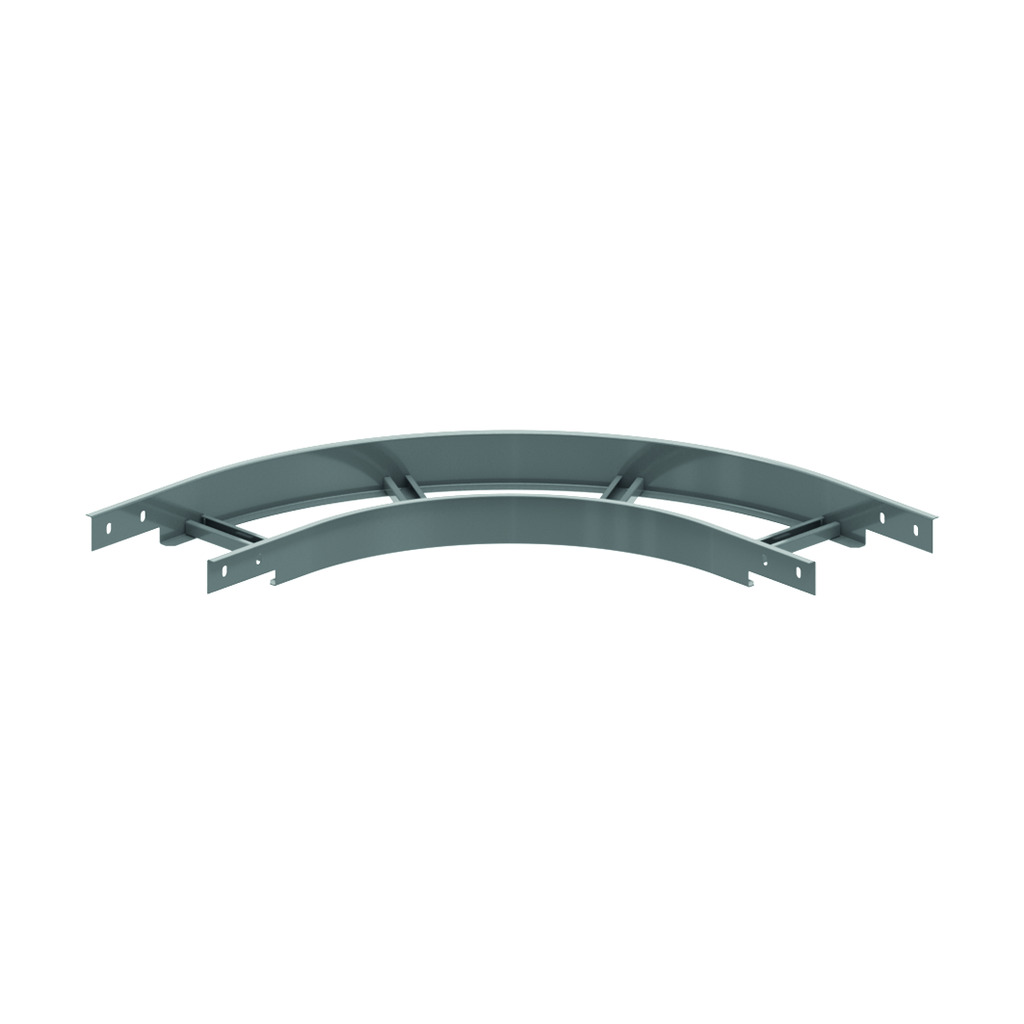

Couplings
- Prefabricated bends available for easy assembly
- Fitted using M6 bolts and nuts
- Covers for bends available separately, to be secured with cover clamps
Article numbers: 760513 | 760514 | 760515
Divider
- Material: Zinc-magnesium
- Height: 60 mm
- Application: M6 bolt and nut per linear metre
- Acts as a physical barrier for power cables
- Enhances fire safety
Article numbers: 76010603000 | 773010 | 773006
