Cable support system for safe cable routing

The basis for professional cable management on flat roofs

Calculate your cable management Download catalogus

Cable baskets and roof supports

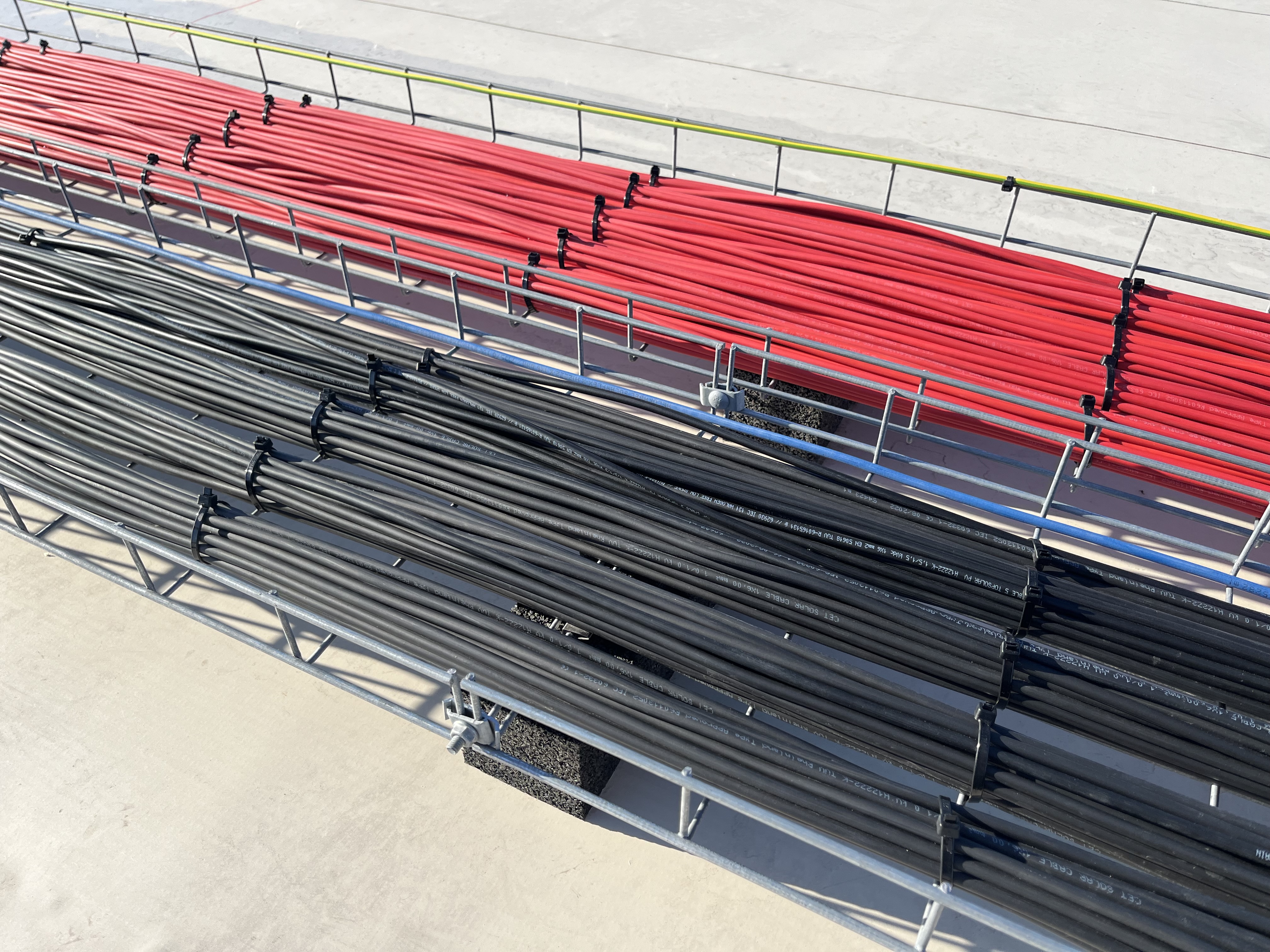

Our cable support systems offer you a reliable and efficient way to lay out cable routes clearly. Our cable baskets and accessories provide a lightweight yet sturdy solution for the safe installation of electrical cabling. Thanks to the various cable basket designs and mounting options available, you can easily put together a system that suits your installation.

Looking for one of our other cable support systems?

Cable trays Cable ladder

Cable basket

Material: Zinc-aluminium
Height: 35 - 60 mm
Width: 100 - 500 mm
Tool-free coupling using clip-on coupling plates
Manufactured with an eco-friendly coating featuring cutting-edge protection (self-healing effect)
Tested electrical conductivity with coupling plates and clamps
Excellent corrosion resistance: C4
Verifiable load diagrams showing permissible loads per support span
First support point at 1/5 of the support span from the coupling, and final span = 0.8 times the span.

^{Article numbers: 76010050603000 | 76010100603000 | 76010150603000 | 76010200603000 | 76010300603000 | 76010400603000 | 76010500603000 | 76010100353000 | 76010150353000 | 76010200353000 | 76010250353000 | 76010350353000}

Cover and cover clamp

Material: Zinc-magnesium
Width: 50 - 500 mm
Application: 6 clamps per cover
Effective protection against UV light and the elements for electrical cabling
Quick installation with clip-on cover clamps, featuring an additional safety tab
Tested for wind resistance

^{Article numbers: 760300503000 | 760301002000 | 760301502000 | 760302002000 | 760302502000 | 760303002000 | 760304002000 | 760305002000 | 760401 | 760402}

Support block

Standard application: one support per 1.5 metres
Weight: 1.135 kg
Wide support for stable installation and the option to install multiple cable baskets
Compatible with bitumen and PVC roofs
Comes as standard with 2 fixing clips; spare clips available
Special clamp for Ø16–19 mm PVC pipes available separately

^{Article numbers: 760215 | 760209 | 760211}

Coupling clamp and coupling plate

Tool-free coupling with clip-on coupling plates for a more secure connection of cable baskets
Universal coupling clamps for joining cable trays in straight and special configurations
Coupling with snap-on plates and coupling clamps enhances electrical conductivity

^{Article numbers: 760201 | 760202 | 760203}

Divider and clamping spring

Material: Zinc-magnesium
Height: 60 mm
Application: one clamp per running metre
Acts as a physical barrier for cables
Enhances fire safety

^{Article numbers: 760204 | 76010603000}

Flat mounting bracket

Suitable for trapezoidal roofs and vertical surfaces
A rubber plate must be fitted to ensure watertightness
Fasten using an M6 x 25 mm stainless steel self-tapping screw

^{Article numbers: 760206}
