- Material: Zinc-magnesium
- Height: 60 mm
- Width: 100–500 mm
- Integrated click-fit connection for easy, tool-free joining
- Manufactured with an eco-friendly coating featuring cut-edge protection (self-healing effect)
- Tested electrical conductivity with integrated coupling and coupling plates
- Excellent corrosion resistance: C4
- Verifiable load diagrams showing permissible loads per support span
First support point at 1/5 of the support span from the coupling, and final span = 0.8 times the span.
Article numbers: 76040100603000, 76040150603000, 76040200603000, 76040300603000, 76040400603000, 76040500603000
Cable support system for safe cable routing
The basis for professional cable management on flat roofs
Cable trays
Our cable support systems offer you a reliable and efficient way to lay out cable routes in an organised manner. Our cable trays and accessories provide a robust and secure solution for the safe installation of electrical cabling. Thanks to the various cable tray designs and mounting options available, you can easily put together a system that suits your installation.
Are you looking for one of our other cable support systems?
Cable trays

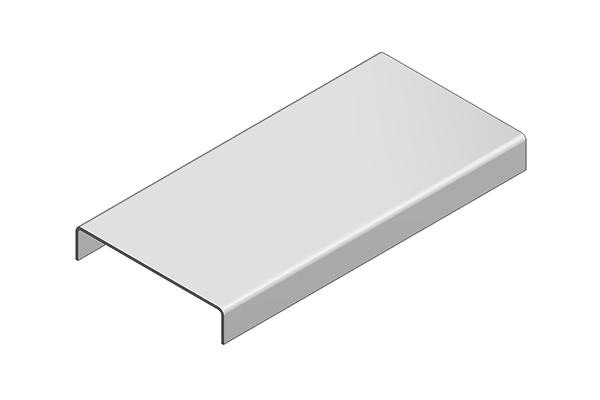

Covers & cover clamps
- Material: Zinc-magnesium
- Width: 100 – 500 mm
- Application: 6 clamps per cover
- Effective protection against UV light and the elements for electrical cabling
- Quick installation with snap-on cover clamps
Article numbers: 760301002000 | 760301502000 | 760302002000 | 760303002000 | 760304002000 | 760305002000 | 760403

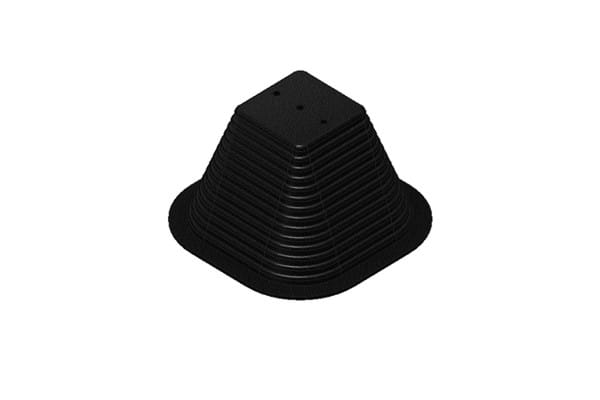

Support block
- Standard application: one support per 1.5 metres
- Weight: 1 kg
- Compatible with bitumen and PVC roofs
- Cable support system to be secured with an M6x10 mm bolt
Article numbers: 760219 | 773010

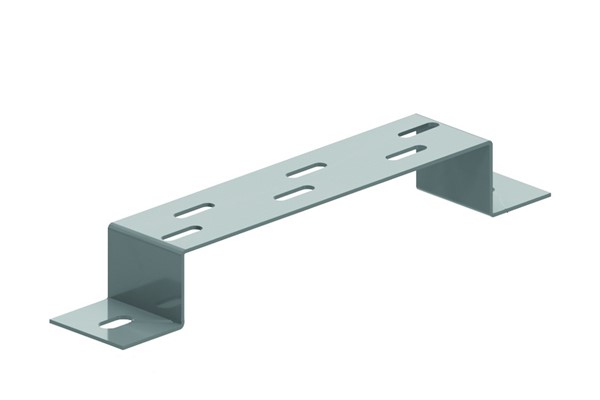

Mounting brackets
- Suitable for vertical surfaces
- Width: 100–400 mm
- Cable support systems to be fixed with M6 bolts and nuts
Article numbers: 760301 | 760302 | 764027 | 760304

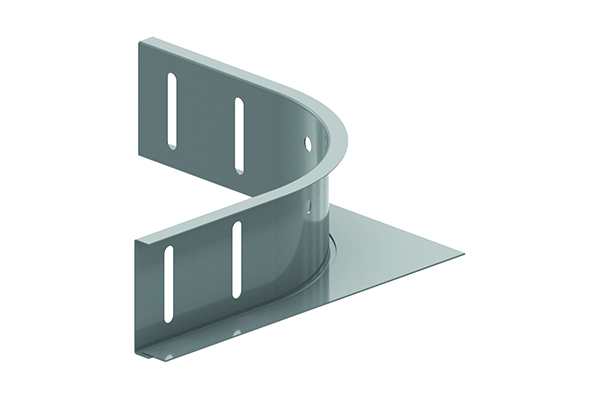

Couplings
- Various versions available for specialised cable duct couplings
- Height: 60 mm
- Universal connectors for bends, T-pieces and cross-pieces
- Prefabricated bend sections available; covers sold separately
- Separate (hinged) coupling plates available
Article numbers: 760212 | 760214 | 760221 | 760411 | 760412 | 760413 | 760414 | 760415
Divider
- Material: Zinc-magnesium
- Height: 60 mm
- Application: one M6 bolt and nut per linear metre
- Acts as a physical barrier for power cables
- Enhances fire safety
Article numbers: 76010603000 | 773010 | 773006
